Wraparound

Forming, filling and sealing in a single process.

As an alternative to the conventional pick & place concept, we offer a wraparound packaging machine for full wrap or two-piece packaging. Since 2019, we have been benefitting from the long-standing knowhow of INVOLVO and we are now able to provide you with both intermittently and continuously operating wraparound systems.

Wraparound

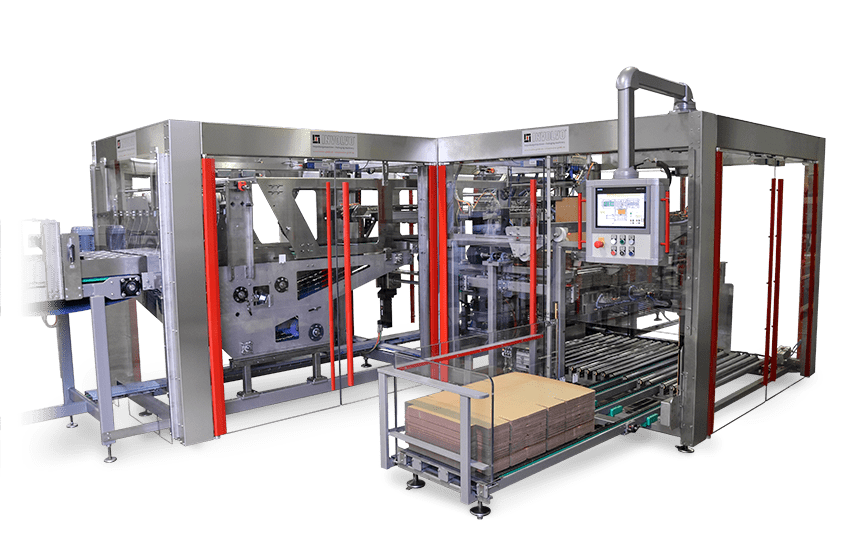

INTERMITTENT OPERATION

Compact and versatile

Our intermittently operating wraparound machine is designed to cover a speed range of up to 30 cases per minute. This packaging machine is suitable for both full wrap packaging and other variants such as trays with or without covers. Thanks to different types of collating units, a wide variety of products can be packed lying flat or standing upright, grouped or individually.

Feature
WP 30-2
WP 30-3
Speed (trays/min.)
< 30
< 30
Size (mm)
150-550
x 100-320
x 100-350
150-650
x 100-450
x 100-350
Blank size (mm)
230-880
x 180-1400
x 180-1000
230-980
x 180-1550
x 180-1000
Wraparound
ETT-Website_Packen_Wrparound-intermittierend_details_2431_3
ETT-Website_Packen_Wrparound-intermittierend_details_2451_2
ETT-Website_Packen_Wrparound-intermittierend_details_2341_108
ETT-Website_Packen_Wrparound-intermittierend_details_2334_53

Tray-Hood Machine

Innovative and specialised design

This machine type was developed to produce tray & hood packaging, i. e. trays with an inserted lid. A multistep unit (two-track chain with compartments) is used to collate the products prior to packaging. Another special feature of this machine are the high-capacity magazines for upright blanks.

Feature
WP 20-2
Speed (trays/min.)
< 25
Size (mm)
150-550
x 100-320
x 100-350
Blank size (mm)
230-880
x 180-1400
x 180-1000
Wraparound
A-2468_Henkel_Details_66_bearbeitet
A-2468_Henkel_Details_60_bearbeitet
A-2468_Henkel_Details_45_bearbeitet
A-2468_Henkel_Details_9_bearbeitet

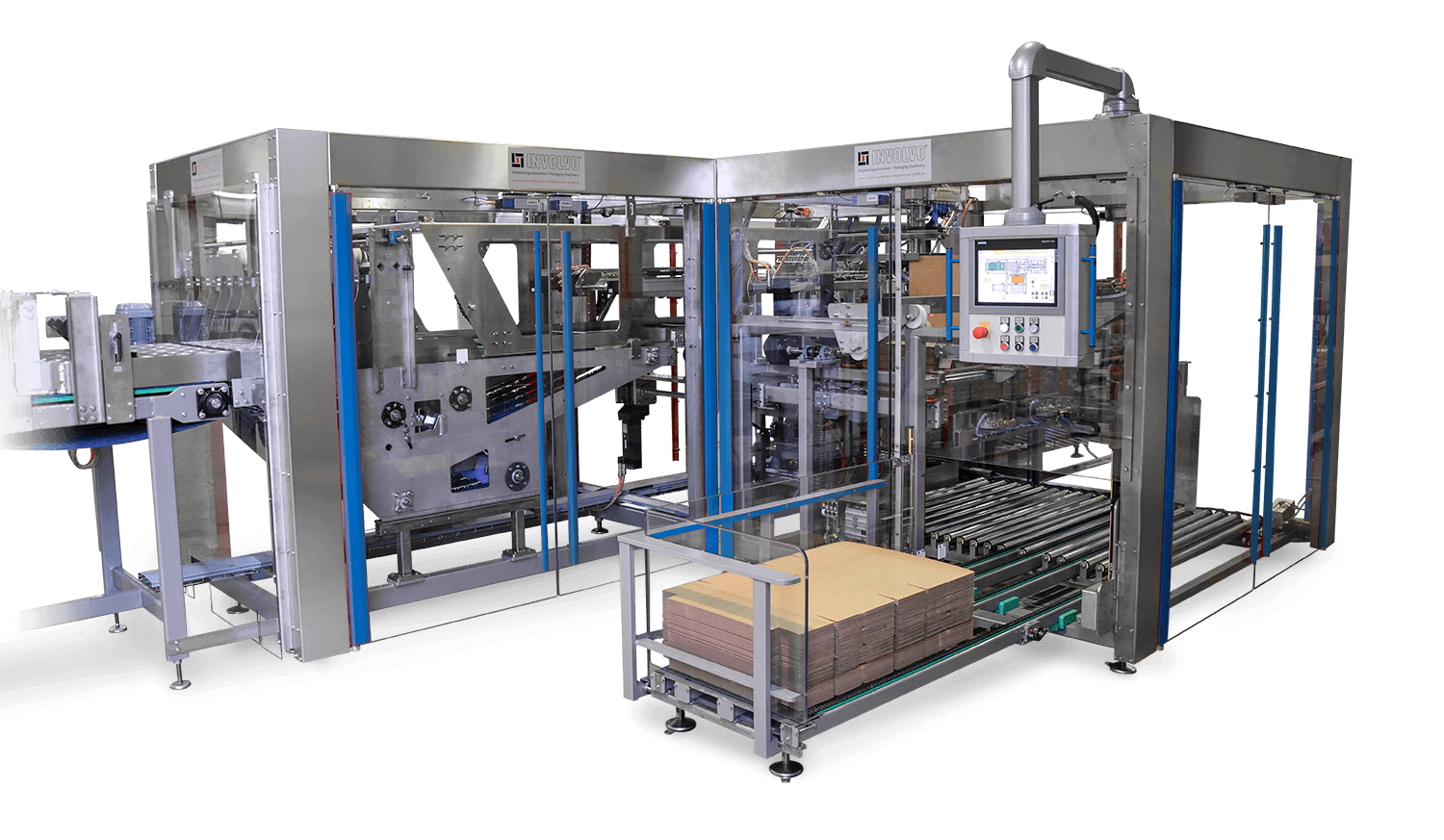

CONTINUOUS OPERATION

Fast and independent production

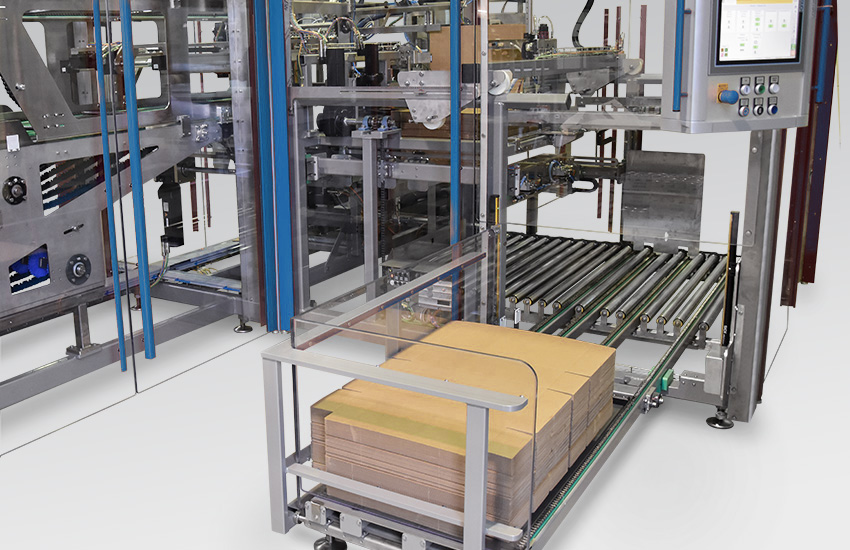

With up to 60 cases per minute, the continuously operating wraparound packaging machine is tuned for performance, no matter whether it produces full wrap packaging or trays. Depending on your product, we can use grouping channel units with lane dividers or swivel blades. This machine can be complemented with a large, extendable magazine which can be replenished during operation to ensure a long-term, automonous performance.

Feature
WP 40-2
WP 60-2
Speed (trays/min.)
< 40
< 60
Size (mm)
200-550
x 100-320
x 100-350
200-550
x 100-320
x 100-350
Blank size (mm)
230-880
x 180-1400
x 180-1000
230-880
x 180-1400
x 180-1000
A-2327-Involvo
ETT-Website_Packen_Wrparound-kontinuierlich_details_2327_27
ETT-Website_Packen_Wrparound-kontinuierlich_details_2327_105
ETT-Website_Packen_Wrparound-kontinuierlich_details_teaserbox-PMC400
ETT-Website_Packen_Wrparound-kontinuierlich

Mögliche Formate

Fefco 102
Fefco 102
Fefco 102
Fefco 102
Fefco 102
Fefco 102
Fefco 102
Fefco 102
Fefco 102
Fefco 102
Fefco 102
Fefco 102

Involvo – PART OF THE ETT-GROUP

In the wraparound packaging equipment sector, INVOLVO is a well-known brand which has been part of the ETT-Group since 2019. Based on the design and experience of INVOLVO, ETT’s wraparound packaging machines are complemented by the final design touch and high manufacturing quality of ETT. INVOLVO stands for reliable, modular machine concepts that are combined with tried-and-tested drive technology to ensure gentle product handlig throughout the packaging process, as well as high efficiency, versatility, durability and user-friendliness. Low maintenance costs, good availability of spare parts and first-class service technicians guarantee reliable production even after many years of operation.

The wraparound packaging machines are designed for fast, easy, precise and repeatable change-over processes without the need for special tools. The standard models are fitted with handwheels with counters for manual change-over, but all packaging machines and systems are optionally available with a fully-automatic change-over function for an additional charge. This faster and more precise change-over procedure increases the availability of the packaging machine and helps to reduce operating errors to the greatest possible extent.

Innovative, ultra-versatile supply systems and collating units ensure highly efficient, gentle and reliable transport, collating and packaging of a great variety of products. Full-wrap cases or various tray types such as ledge trays (with stacking flaps) and octagonal variants as well as film-wrapped trays can be produced with these wraparound packaging machines.
